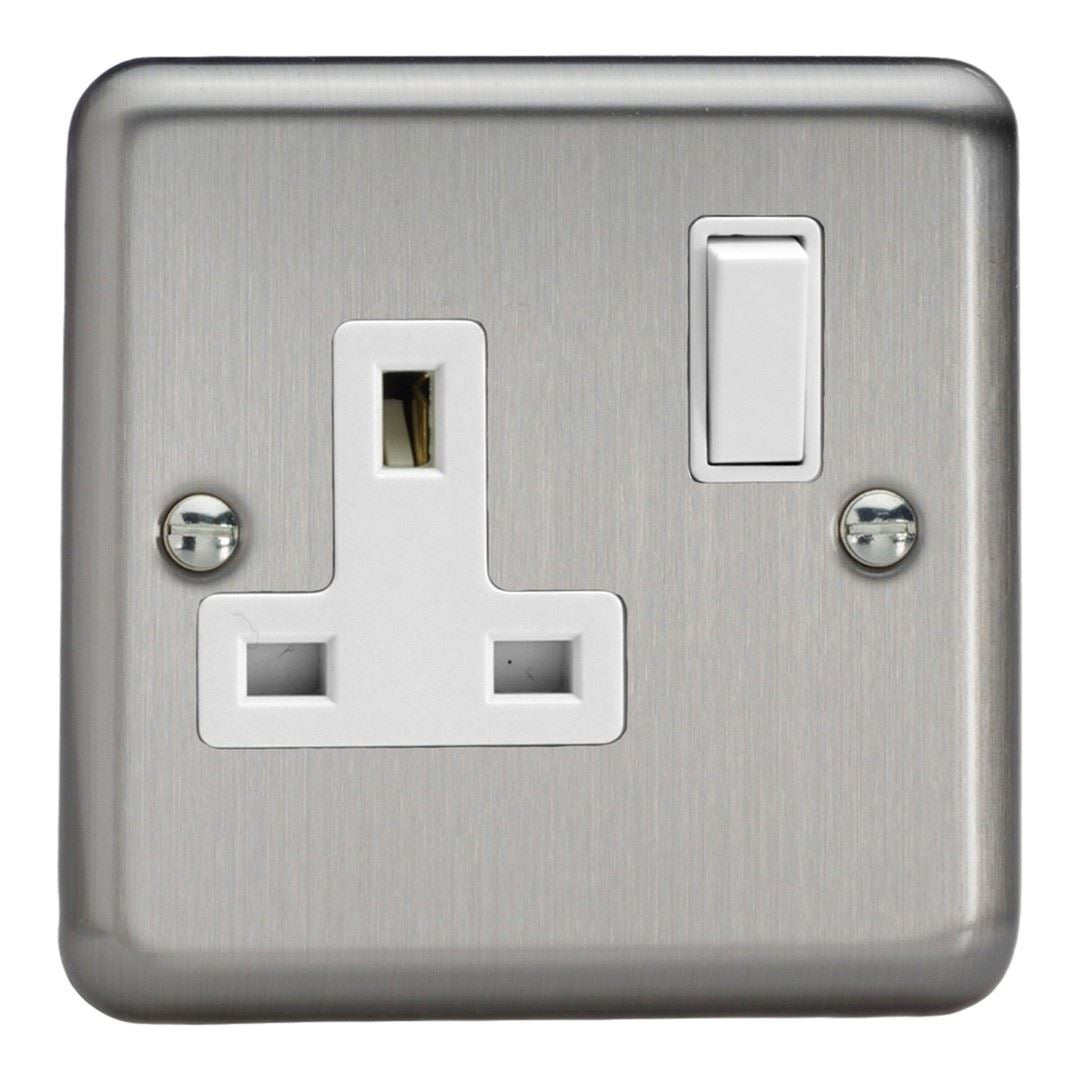

Varilight 1 Gang 13 Amp Switched Electrical Plug Socket Brushed Matt Chrome White Insert XS4W

Varilight 1 Gang 13 Amp Switched Electrical Plug Socket Brushed Matt Chrome White Insert XS4W

£6.95
£6.95
Sale Sold out
Taxes included.
Stock Code: XS4W
  • Varilight 1-Gang 13A Double Pole Switched Socket
  • Dimmer type / Insert colour: White
  • Plate Type: Classic
  • Finish: Matt Chrome
  • Insert/Rocker Colour (if applicable): White Inserts
  • Barcode: 5021575830323
  • Dimensions: 88x88x31mm
  • Height (mm): 88
  • Width (mm): 88
  • Depth (mm): 31
  • Faceplate Depth: 7mm
  • Packed Weight g: 150
  • Required Back Box Depth: 25mm
  • No. of Gangs: 1
  • Grid Spaces: N/A
  • Product Type: 13A Socket
  • Function: 1-Gang Double Pole Switched
  • N/A
  • Range: Classic Matt Chrome
  • Fixing Hole Centres: 60.3mm
  • Terminal Capacity (Live): 4 x 2.5mm²
  • Terminal Diameter (Live): 4.8mm
  • Terminal Capacity (Neutral): 4 x 2.5mm²
  • Terminal Diameter (Neutral): 4.8mm
  • Terminal Capacity (Earth): 4 x 2.5mm²
  • Terminal Diameter (Earth): 4.8mm
  • Maximum Current Rating: 13A
  • Switched Poles: Double
  • Voltage: 220/250V AC
  • Maximum Load: 13A
  • Contact Gap Minimum: 3mm
  • Applicable Saftey Certification:BS 1363-2
  • Indoor Use Only
  • Intended Applications: Domestic power supply
  • Application Advice: N/A
  1. N/A
  • Earthed: Product Must Be Earthed
  • Features: Double pole switching for safer operation
  1. Curved edge faceplate
  2. N/A
  3. N/A
  4. N/A

Product dimensions

Product Depth (mm):

Product Width (mm):

Product Height (mm):
