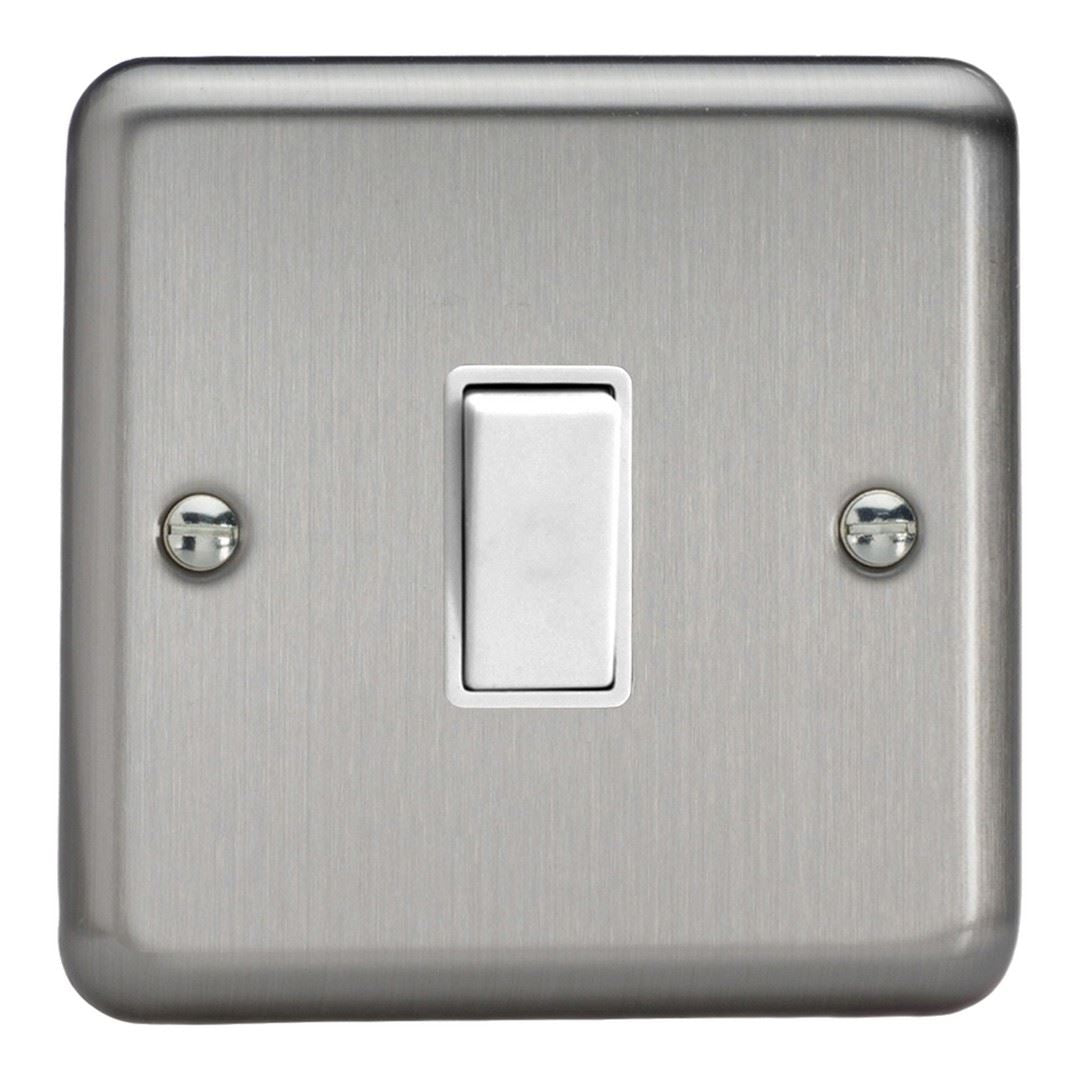

Varilight 1 Gang Intermediate 10A Rocker Light Switch Brushed Matt Chrome White Insert XS7W

Varilight 1 Gang Intermediate 10A Rocker Light Switch Brushed Matt Chrome White Insert XS7W

£7.95
£7.95
Sale Sold out
Taxes included.
Stock Code: XS7W
  • Varilight 1-Gang 10A Intermediate Rocker Switch
  • Dimmer type / Insert colour: White
  • Plate Type: Classic
  • Finish: Matt Chrome
  • Insert/Rocker Colour (if applicable): White Rocker
  • Barcode: 5021575830620
  • Dimensions: 88x88x25mm
  • Height (mm): 88
  • Width (mm): 88
  • Depth (mm): 25
  • Faceplate Depth: 7mm
  • Packed Weight g: 130
  • Required Back Box Depth: 16mm
  • No. of Gangs: 1
  • Grid Spaces: N/A
  • Product Type: Intermediate Rocker Switch
  • Function: 1-Gang 10A
  • N/A
  • Range: Classic Matt Chrome
  • Fixing Hole Centres: 60.3mm
  • Terminal Capacity (Live): 3 x 1.5mm²
  • Terminal Diameter (Live): 3.3mm
  • Terminal Capacity (Neutral): -
  • Terminal Diameter (Neutral): -
  • Terminal Capacity (Earth): 3 x 1.5mm²
  • Terminal Diameter (Earth): 3.3mm
  • Maximum Current Rating: 10A
  • Switched Poles: Single
  • Voltage: 220/250V AC
  • Maximum Load: 10A
  • Contact Gap Minimum: 3mm
  • Applicable Saftey Certification:BS EN 60669-1
  • Indoor Use Only
  • Intended Applications: Domestic lighting circuits
  • Application Advice: N/A
  1. N/A
  • Earthed: Product Must Be Earthed
  • Features: Intermediate switch enables 3-way switching
  1. Suitable for controlling both mains and low voltage lighting
  2. Curved edge faceplate
  3. N/A
  4. N/A

Product dimensions

Product Depth (mm):

Product Width (mm):

Product Height (mm):

View full details
