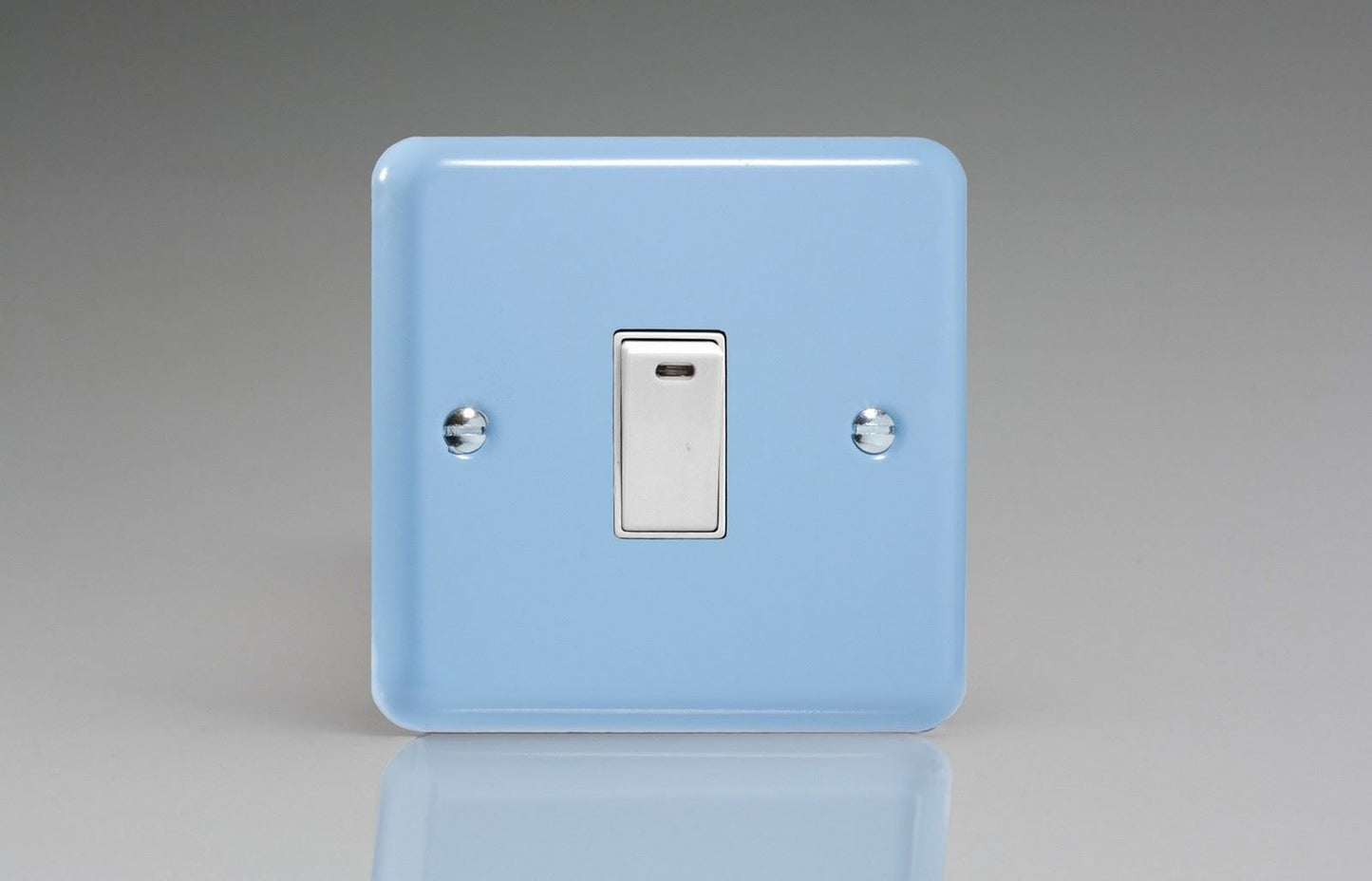

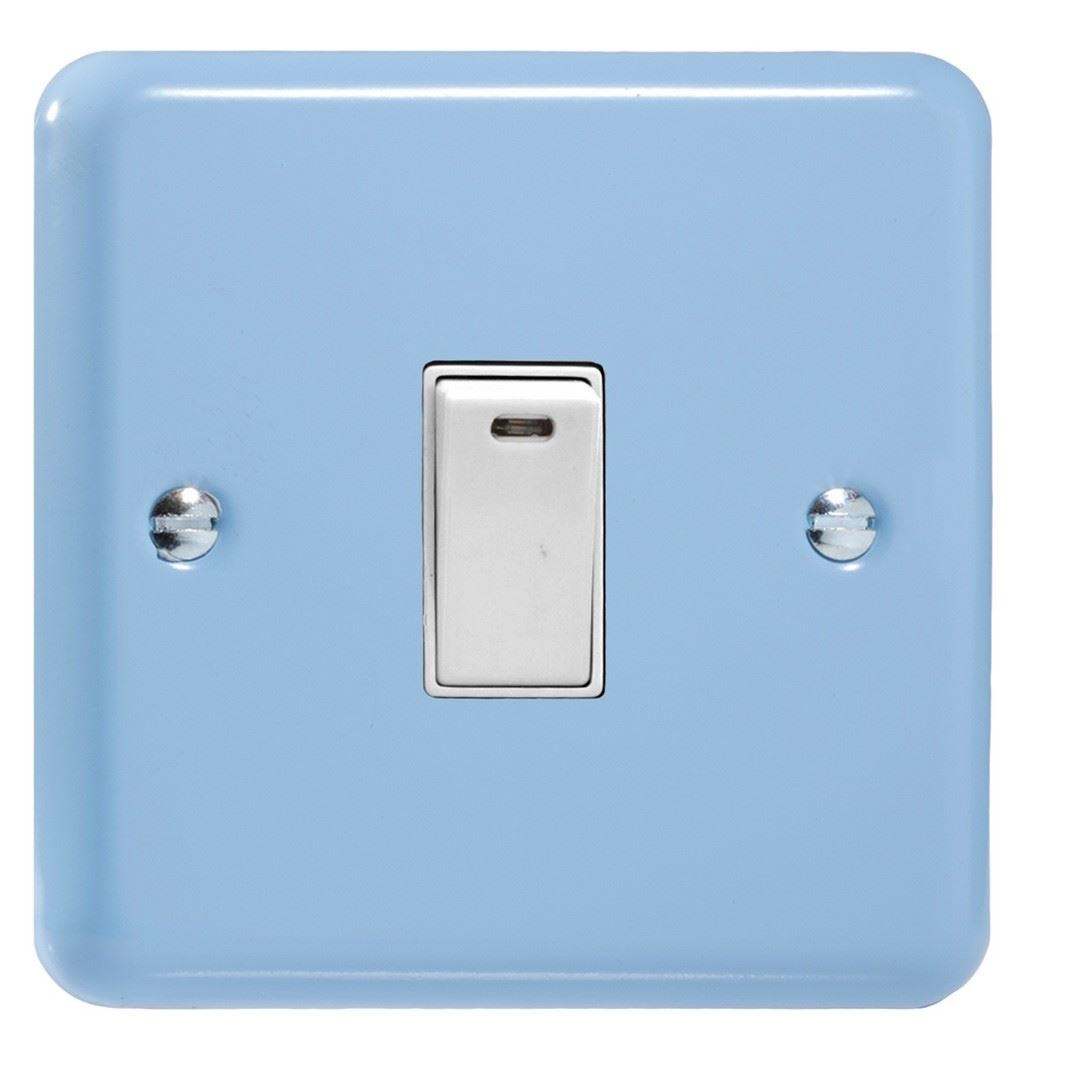

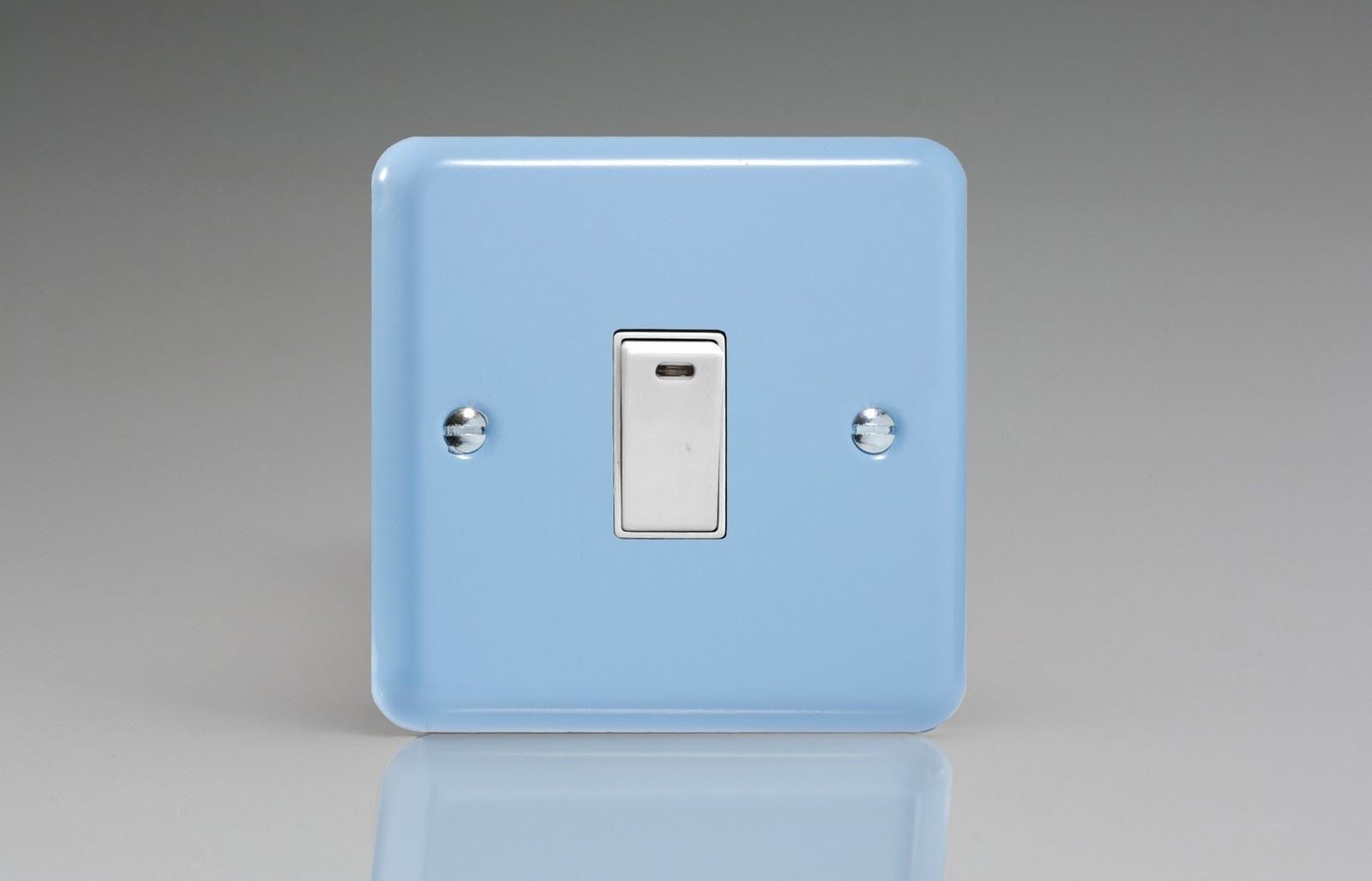

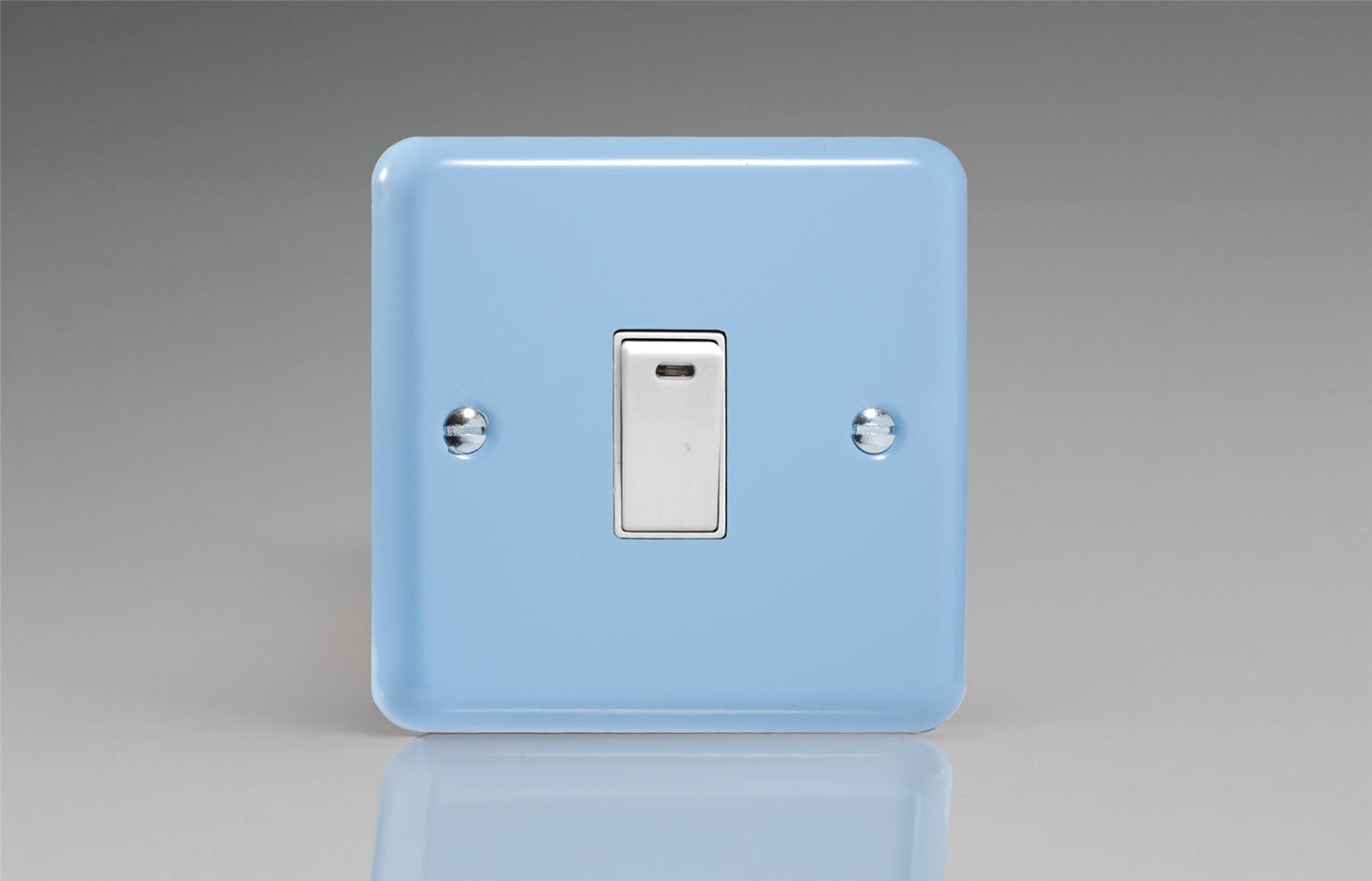

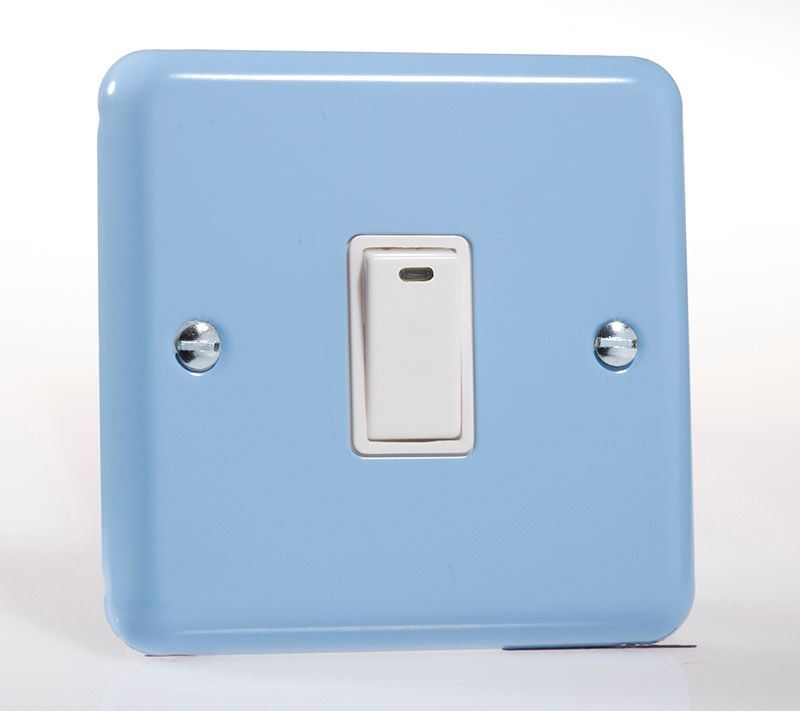

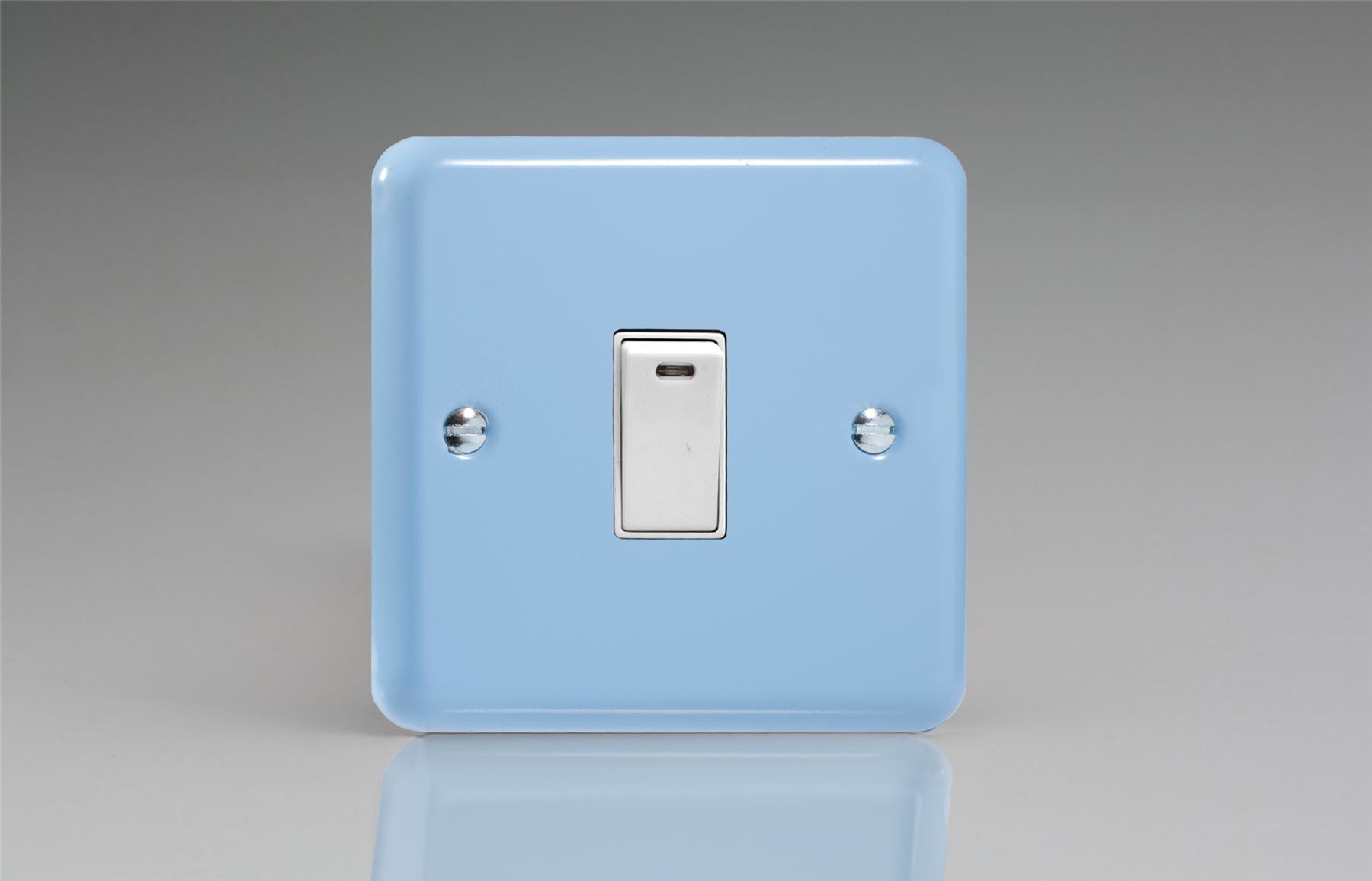

Varilight Pastel 1G 20A Double Pole Rocker Light Switch Neon Indicator Light Duck Egg Blue XY20NW.DB
Varilight Pastel 1G 20A Double Pole Rocker Light Switch Neon Indicator Light Duck Egg Blue XY20NW.DB
Regular price
£9.95
Regular price
Sale price
£9.95
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Stock Code: XY20NW.DB
- Varilight 1-Gang 20A Double Pole Rocker Switch + Neon Indicator Light
- Dimmer type / Insert colour: White
- Plate Type: Lily
- Finish: Duck Egg Blue
- Insert/Rocker Colour (if applicable): White Rocker
- Barcode: 5021575215182
- Dimensions: 88x88x30mm
- Height (mm): 88
- Width (mm): 88
- Depth (mm): 30
- Faceplate Depth: 7mm
- Packed Weight g: 140
- Required Back Box Depth: 16mm
- No. of Gangs: 1
- Grid Spaces: N/A
- Product Type: 20A Rocker Switch
- Function: 1-Gang 20A + Neon
- N/A
- Range: Lily Pastel Duck Egg Blue
- Fixing Hole Centres: 60.3mm
- Terminal Capacity (Live): 4 x 2.5mm²
- Terminal Diameter (Live): 4.5mm
- Terminal Capacity (Neutral): 4 x 2.5mm²
- Terminal Diameter (Neutral): 4.5mm
- Terminal Capacity (Earth): 3 x 1.5mm²
- Terminal Diameter (Earth): 3.3mm
- Maximum Current Rating: 20A
- Switched Poles: Double
- Voltage: 220/250V AC
- Maximum Load: 20A
- Contact Gap Minimum: 3mm
- Applicable Saftey Certification:BS EN 60669-1
- Indoor Use Only
- Intended Applications: Domestic power supply
- Application Advice: N/A
- N/A
- Earthed: Product Must Be Earthed
- Features: Double pole switching
- Neon indicator light
- Curved edge faceplate
- N/A
- N/A
